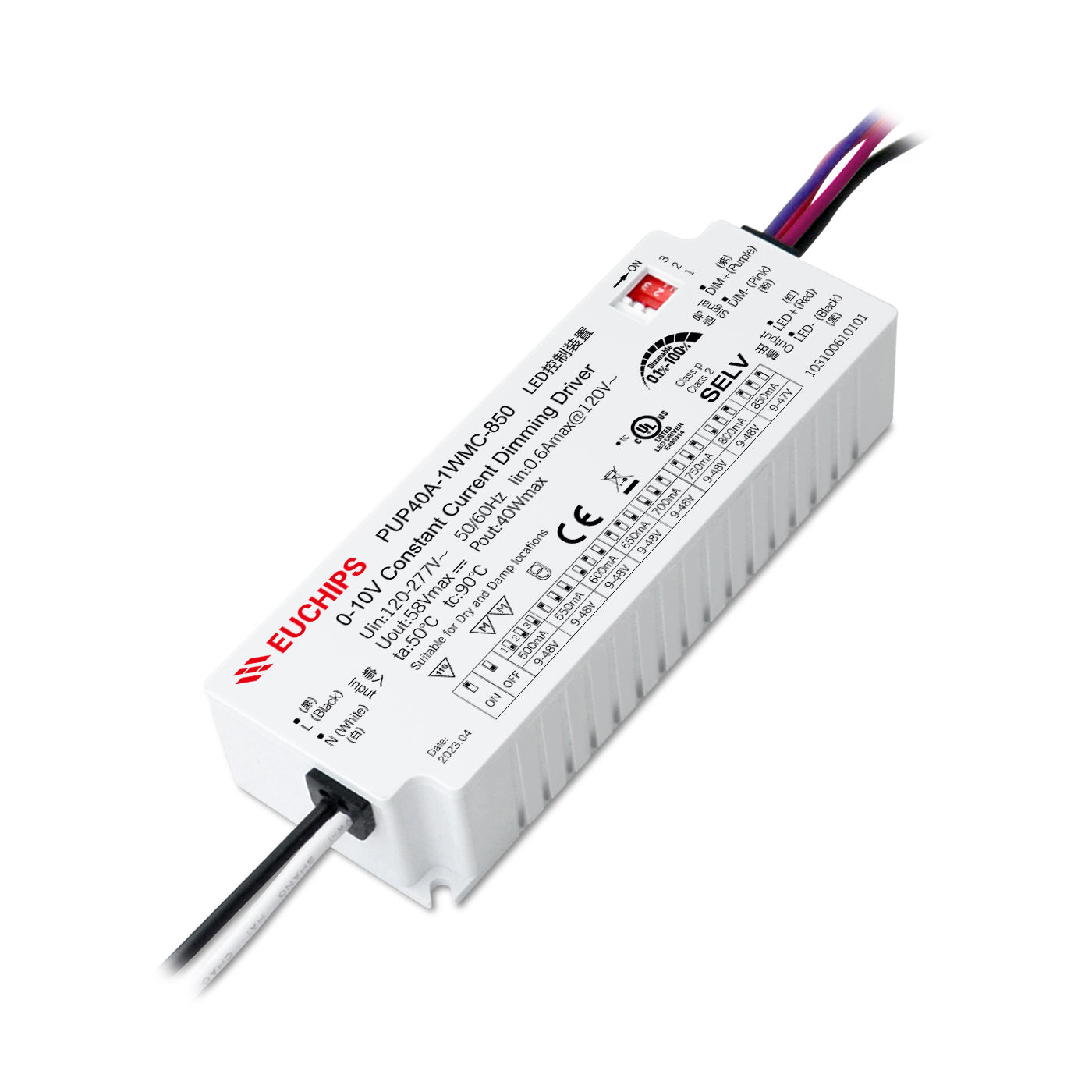

40W 850mA 0-10V CC Driver( PUP40A-1WMC-850 & PUP40A-1WMC-1200 )
Single channel output, output current level selectable by DIP S.W. Support 3-in-1 dimming mode:0-10V active signal, adjustable...
Vendor:
Euchips Electronics Inc.
SKU:
103100611101
Availability:
Out Of Stock
Product Type:
0-10V Dimming Driver
- $0.00
- $0.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$0.00
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Covid-19 Shipping Delay Notice
Description
x- Single channel output, output current level selectable by DIP S.W.
- Support 3-in-1 dimming mode:0-10V active signal, adjustable resistance, PWM(A model)
- Input voltage of 120VAC ~ 277VAC
- Dimming range: 0.1-100%，Dimming effect smooth, no flicker
- Protections: Short circuit, Over load，Over voltage
- Suitable for indoor LED lighting application
| Model | PUP40A-1WMC-850 | |
|
Input |
Voltage | 120VAC-277VAC |
| Frequency | 50/60Hz | |
| Efficiency | >87%@120VAC, Full load | |
| PF | ≥0.99@120VAC, Full load | |
| THD(full load) | <10%@120VAC, Full load | |
| Current | 0.6Amax@120VAC | |
| Inrush Current | Cold start,30A@120VAC | |
| Standby Power | <1W | |
| Current/Voltage/Power | 500mA/9-48V/24W 600mA/9-48V/28.8W 700mA/9-48V/33.6W 800mA/9-48V/38.4W | |
| 550mA/9-48V/26.5W 650mA/9-48V/31.2W 750mA/9-48V/36W 850mA/9-47V/39.95W | ||
| Channel | 1 | |
| Output | No load output voltage | 58V Max |
| Frequency | 1KHz Min PWM | |
| Current Accuracy | ±5% | |
| LF current ripple(<120Hz) | <3% | |
|
Protection |
Over Voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short circuit | Close output, recovers automatically after fault removed | |
|
Safety & EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5m | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMI Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
| Function | Dimming type | 0-10V(Type A) |
| Dimming range | 0.1%-100% Dimming to off | |
|
Others |
Dimension | 121*44*26.5mm(L*W*H) |
| Pack Information | Net weight: 156g±5%/PCS; 50PCS/Carton; 8.3kg±5%/Carton; Carton Size: 286x239x194mm (L*W*H) | |
| IP rating | IP20 | |
| Working temp. | -20 ~50 | |
| tc | 90 | |
| Relative humidity | 20~90% RH | |
| Lifetime | 50,000h@tc:85 | |
| Material | PC | |
| Switch cycle | >25,000 times | |
|
Model |
PUP40A-1WMC-1200 | |
|
Input |
Voltage | 120VAC-277VAC |
| Frequency | 50/60Hz | |
| Efficiency | >87%@120VAC, Full load | |
| PF | ≥0.99@120VAC, Full load | |
| THD(full load) | <10%@120VAC, Full load | |
| Current | 0.6Amax@120VAC | |
| Inrush Current | Cold start,30A@120VAC | |
| Standby Power | <1W | |
|
Output |
Current/Voltage/Power | 850mA/9-42V/35.7W 950mA/9-42V/39.99W 1050mA/9-38V/39.9W 1150mA/9-34V/39.1W |
| 900mA/9-42V/37.8W 1000mA/9-40V/40W 1100mA/9-36V/39.6W 1200mA/9-33V/39.6W | ||
| Channel | 1 | |
| No load output voltage | 58V Max | |
| Frequency | 1KHz Min PWM | |
| Current Accuracy | ±5% | |
| LF current ripple(<120Hz) | <3% | |
| Protection | Over Voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short circuit | Close output, recovers automatically after fault removed | |
|
Safety & EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5m | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMI Eission | EN55015,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
| Function | Dimming type | 0-10V(Type A) |
| Dimming range | 0.1%-100% Dimming to off | |
|
Others |
Dimension | 121*44*26.5mm(L*W*H) |
| Pack Information | Net weight: 156g±5%/PCS; 50PCS/Carton; 8.3kg±5%/Carton; Carton Size: 286x239x194mm (L*W*H) | |
| IP rating | IP20 | |
| Working temp. | -20℃ ~50℃ | |
| tc | 90℃ | |
| Relative humidity | 20~90% RH | |
| Lifetime | 50,000h@tc:85℃ | |
| Material | PC | |
| Switch cycle | >25,000 times | |
