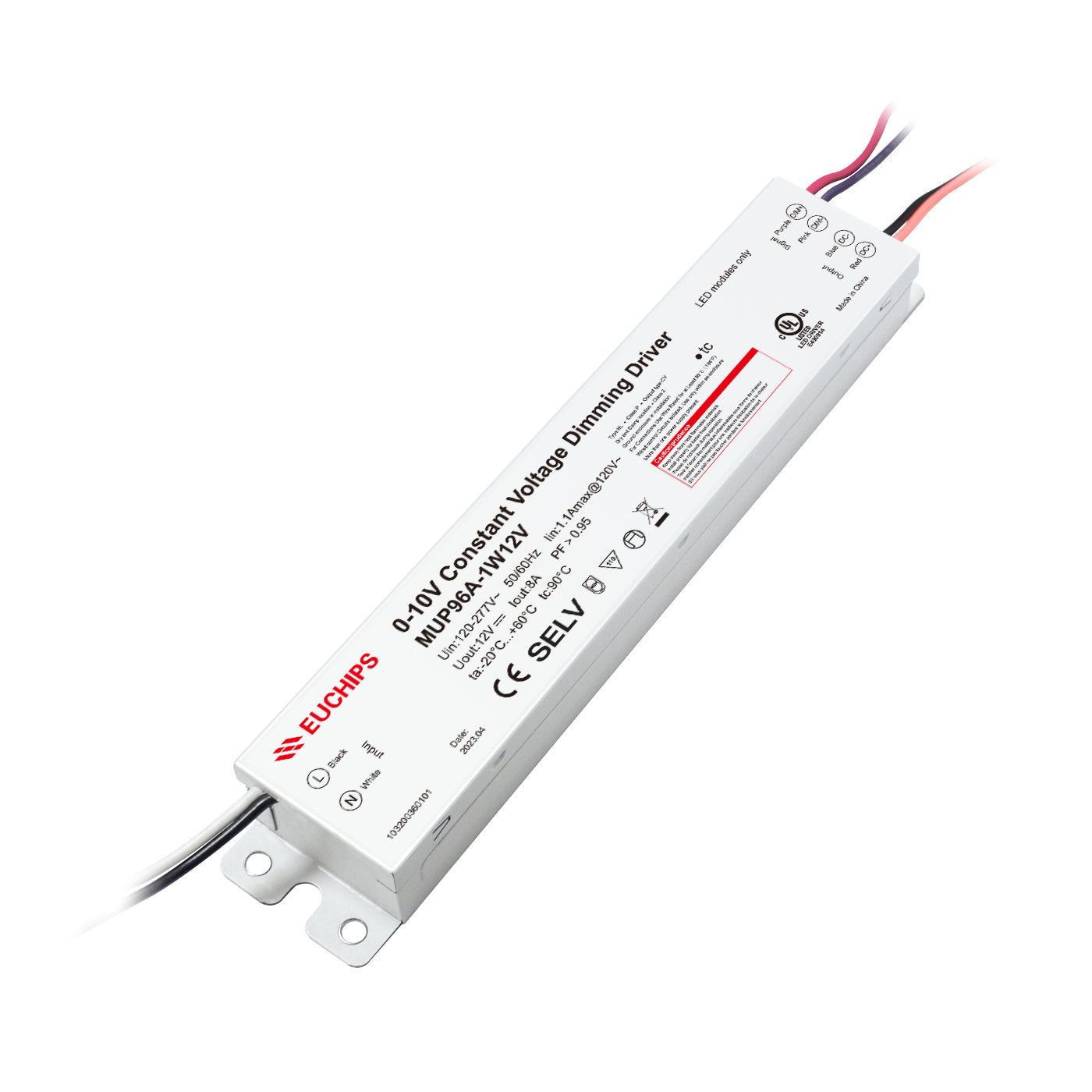

96W 12/24VDC 0-10V CV Driver (MUP96A-1W12V & MUP96A-1W24V)
96W 12/24VDC 0-10V CV Driver (MUP96A-1W12V & MUP96A-1W24V)

96W 12/24VDC 0-10V CV Driver (MUP96A-1W12V & MUP96A-1W24V)

Single channel constant voltage output,8.0A Max Support 3-in-1 dimming mode( 0-10V active signal, adjustable resistance and PWM signal) High input voltage of 120VAC~277VAC Dimming range of 1-100%, and dimming effect smooth, no flicker 100% output when no dimming signal input, can be used as normal power supply Over load protection; over voltage protection; short circuit protection; Over temperature IP20, suitable for indoor LED lighting application Model...
Vendor: Euchips Electronics Inc.
SKU: 103200360101
Availability: Out Of Stock
Product Type: 0-10V Dimming Driver
$28.83
$28.83
Please hurry! Only 0 left in stock
Output Voltage Options: 12VDC Output
Subtotal: $28.83
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Free Returns

Learn More.

Covid-19 Shipping Delay Notice

96W 12/24VDC 0-10V CV Driver (MUP96A-1W12V & MUP96A-1W24V)

96W 12/24VDC 0-10V CV Driver (MUP96A-1W12V & MUP96A-1W24V)

$28.83
96W 12/24VDC 0-10V CV Driver (MUP96A-1W12V & MUP96A-1W24V)
96W 12/24VDC 0-10V CV Driver (MUP96A-1W12V & MUP96A-1W24V)

96W 12/24VDC 0-10V CV Driver (MUP96A-1W12V & MUP96A-1W24V)

$28.83
Output Voltage Options: 12VDC Output
Description
Description
x
  • Single channel constant voltage output,8.0A Max
  • Support 3-in-1 dimming mode( 0-10V active signal, adjustable resistance and PWM signal)
  • High input voltage of 120VAC~277VAC
  • Dimming range of 1-100%, and dimming effect smooth, no flicker
  • 100% output when no dimming signal input, can be used as normal power supply
  • Over load protection; over voltage protection; short circuit protection; Over temperature
  • IP20, suitable for indoor LED lighting application

Model

 MUP96A-1W12V








Input

 Efficiency 88%@120VAC, Full load
Voltage 120VAC-277VAC
Frequency 50/60Hz
Power Factor >0.99@120VAC, Full load
Current 1.1Amax@120VAC, Full load
Inrush Current Cold start, 45A@120VAC
Standby power < 2.5W






Output

 Channel 1
Voltage 12VDC
Current 8.0A
Power 96W
Frequency 1kHz PWM
R&N(Max) <500mV Vp-p
Turn On Delay Time <0.5s from power on to Iout>0 @120Vac
Function Dimming type 0-10V active signal, adjustable resistance and PWM signal
Dimming range 1%-100%
 Protection Over Voltage Hiccup, recovers after fault condition is removed
Over load Hiccup, recovers after fault condition is removed
Short circuit Hiccup, recovers after fault condition is removed
Over temperature Shut down and auto-restart after normal temperature




Safety & EMC

 Surge L-N:2.5KV
Withstand Voltage I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5mA;
Safety standards UL8750/UL1310/CSA25013,CSA class P
EMI Eission EN55015,EN61000-3-2 Class C,IEC61000-3-3
EMC Immunity FCC class B(120V)/class A(277V)






Others

 Working Temp. -20℃~60℃
Storage Temp.; Humidity -40℃~85℃ 20-90%RH
Tc 90℃
Material Metal
IP Rating IP20
Lifetime 50,000h@tc:70℃
Warranty Condition 5 years
Switch Cycle >25,000 times
Packing Size Net weight: 700g±5%/PCS; 20PCS/Carton; 14.5kg±5%/Carton; Carton Size: 300*268*168mm(L*W*H)
Dimension 243*40*30mm(L*W*H)




Model

 MUP96A-1W24V








Input

 Efficiency 89%@120VAC, Full load
Voltage 120VAC-277VAC
Frequency 50/60Hz
Power Factor >0.99@120VAC, Full load
Current 1.1Amax@120VAC, Full load
Inrush Current Cold start, 45A@120VAC
Standby power < 2.5W






Output

 Channel 1
Voltage 24VDC
Current 4.0A
Power 96W
Frequency 1kHz PWM
R & N (Max) <300mV Vp-p
Turn On Delay Time <0.5s from power on to Iout>0 @120Vac
Function Dimming type 0-10V active signal, adjustable resistance and PWM signal
Dimming range 1%-100%




Protection

 Over Voltage Hiccup, recovers after fault condition is removed
Over load Hiccup, recovers after fault condition is removed
Short circuit Hiccup, recovers after fault condition is removed
Over temperature Shut down and auto-restart after normal temperature

Safety & EMC

 Surge L-N:2.5KV
Withstand Voltage I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5mA;
Safety standards UL8750/UL1310/CSA25013,CSA class P
EMI Eission EN55015,EN61000-3-2 Class C,IEC61000-3-3
EMC Immunity FCC class B(120V)/class A(277V)








Others

 Working Temp. -20℃ ~60℃
Storage Temp.; Humidity -40℃~85℃ 20-90%RH
Tc 90℃
Material Metal
IP Rating IP20
Lifetime 50,000h@tc:70℃
Warranty Condition 5 years
Switch Cycle >25,000 times
Packing Size Net weight: 700g±5%/PCS; 20PCS/Carton; 14.5kg±5%/Carton; Carton Size: 300*268*168mm(L*W*H)
Dimension 243*40*30mm(L*W*H)
