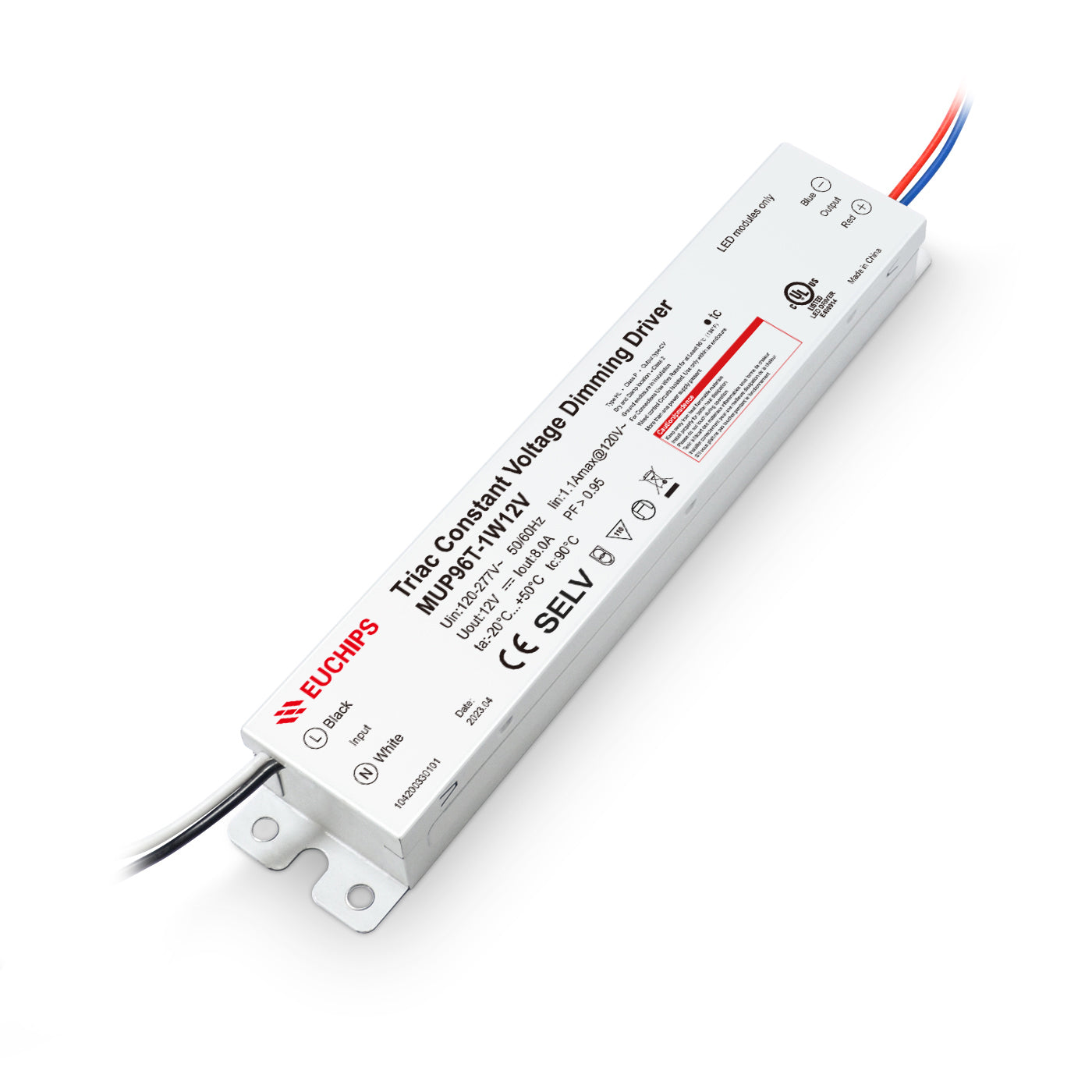

96W 12/24VDC Triac CV Driver (MUP96T-1W12V & MUP96T-1W24V)
96W 12/24VDC Triac CV Driver (MUP96T-1W12V & MUP96T-1W24V)

96W 12/24VDC Triac CV Driver (MUP96T-1W12V & MUP96T-1W24V)

Single-channel constant voltage output, 8A Max. Support Leading edge (Triac) and Trailing edge (ELV)Dimmer Dimming range from...
Vendor: Euchips Electronics Inc.
SKU: 104200330101
Availability: Out Of Stock
Product Type: Triac Dimming Driver
$27.33
$27.33
Please hurry! Only 0 left in stock
Output Voltage Options: 12VDC Output
Subtotal: $27.33
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Free Returns

Learn More.

Covid-19 Shipping Delay Notice

96W 12/24VDC Triac CV Driver (MUP96T-1W12V & MUP96T-1W24V)

96W 12/24VDC Triac CV Driver (MUP96T-1W12V & MUP96T-1W24V)

$27.33
96W 12/24VDC Triac CV Driver (MUP96T-1W12V & MUP96T-1W24V)
96W 12/24VDC Triac CV Driver (MUP96T-1W12V & MUP96T-1W24V)

96W 12/24VDC Triac CV Driver (MUP96T-1W12V & MUP96T-1W24V)

$27.33
Output Voltage Options: 12VDC Output
Description
Description
x
  • Single-channel constant voltage output, 8A Max.
  • Support Leading edge (Triac) and Trailing edge (ELV)Dimmer
  • Dimming range from 40VAC to 120V AC
  • Dimming effect smooth, no flicker
  • High efficiency: up to 88%
  • PF: up to 0.99
  • Over current protection; Short circuit protection；Over voltage
  • Suitable for indoor LED lighting application



Model

 MUP96T-1W12V




Input

 Efficiency 88%@120VAC, Full load
Voltage 120VAC-277VAC
Frequency 50/60Hz
Power Factor ≥0.99@120VAC, Full load
THD <10%@120VAC,Full Load
Current 1.1Amax@120VAC, Full load
Dimming voltage range 40-120VAC
Inrush Current Cold start, 70A@120VAC
Standby Power <4W

Output

 Current/Voltage/Power 8A/12VDC/96W
Frequency 1000Hz PWM
Ripple Current <300mV Vp-p
Channel 1
Turn On Delay Time <0.5s from power on to Iout>0 @120Vac
Function Dimming Mode Triac/ELV (120VAC phase-cut,277VAC Non-Dimming)
Dimming Range 1-100% Dimming to Off
Protection Short Circuit Hiccup，recovers after fault condition is removed
Over Load Hiccup，recovers after fault condition is removed
Over Voltage Hiccup，recovers after fault condition is removed
Over temperature Shut down and auto-restart after normal temperature

Safety & EMC

 Surge L-N:2.5kV;
Withstand Voltage I/P-O/ P: 3000VAC/1min/5mA
Safety Standards UL8750/UL1310/CSA25013.CSA Class P
EMI Eission EN55015,EN61000-3-2 Class C,IEC61000-3-3
EMC Immunity FCC ClassB(120V)/Class A(277)








Others

 Working Temp. -20℃~50℃
Storage Temp.; Humidity -40℃ ~85℃ 20-90%RH
Tc 90℃
Material Metal
IP Rating IP20
Lifetime 50,000h@tc:70℃
Warranty Condition 5 years
Switch Cycle >25,000 times
Packing Size Net weight: 700g±5%/PCS; 20PCS/Carton; 14.5kg±5%/Carton; Carton Size: 300*268*168mm(L*W*H)
Dimension 243*40*30mm(L*W*H)





Model

 MUP96T-1W24V








Input

 Efficiency 89%@120VAC, Full load
Voltage 120VAC-277VAC
Frequency 50/60Hz
Power Factor ≥0.99@120VAC, Full load
THD <10%@120VAC,Full Load
Current 1.1Amax@120VAC, Full load
Dimming voltage range 40-120VAC
Inrush Current Cold start, 70A@120VAC
Standby Power <4W




Output

 Current/Voltage/Power 4A/24VDC/96W
Frequency 1000Hz PWM
Ripple Voltage <300mV Vp-p
Channel 1
Turn On Delay Time <0.5s from power on to Iout>0 @120Vac
Function Dimming Mode Triac/ELV (120VAC phase-cut,277VAC Non-Dimming)
Dimming Range 1-100% Dimming to Off
Protection Short Circuit Hiccup，recovers after fault condition is removed
Over Load Hiccup，recovers after fault condition is removed
Over Voltage Hiccup，recovers after fault condition is removed
Over temperature Shut down and auto-restart after normal temperature

Safety & EMC

 Surge L-N:2.5kV;
Withstand Voltage I/P-O/ P: 3000VAC/1min/5mA
Safety Standards UL8750/UL1310/CSA25013.CSA Class P
EMI Eission EN55015,EN61000-3-2 Class C,IEC61000-3-3
EMC Immunity FCC ClassB(120V)/Class A(277)










Others

 Working Temp. -20℃~55℃
Storage Temp.; Humidity -40 ℃~85℃ 20-90%RH
Tc 90℃
Material Metal
IP Rating IP20
Lifetime 50,000h@tc:70℃
Warranty Condition 5 years
Switch Cycle >25,000 times
Packing Size Net weight: 700g±5%/PCS; 20PCS/Carton; 14.5kg±5%/Carton; Carton Size: 300*268*168mm(L*W*H)
Dimension 243*40*30mm(L*W*H)
