96W 24V 0-10V/TRIAC CV Driver( MUP96AT-1W24V&MUP96AT-1W24V-B)
·Single channel constant voltage output,4A Max·Wide input voltage of 120VAC ~ 277VAC·Dimming range of 0.1-100%, and dimming...
Vendor:
Euchips Electronics Inc.
Availability:
In Stock
Product Type:
0-10V Dimming Driver&TRIAC Dimming Driver
- $89.99
- $89.99
- Unit price
- per
Please hurry! Only 1897 left in stock
Subtotal:
$89.99
10 customers are viewing this product
Couldn't load pickup availability
Free Shipping
Free standard shipping on orders over $99
Estimated to be delivered on 12/01/2022 - 15/10/2022.
Free Returns
Learn More.
Covid-19 Shipping Delay Notice
Description
x·Single channel constant voltage output,4A Max
·Wide input voltage of 120VAC ~ 277VAC
·Dimming range of 0.1-100%, and dimming effect smooth, flicker free
·100% output when no dimming signal input, can be used as normal power supply
·Protection: Over load; short circuit; Over Current
·IP20, suitable for indoor LED lighting application
|
Model |

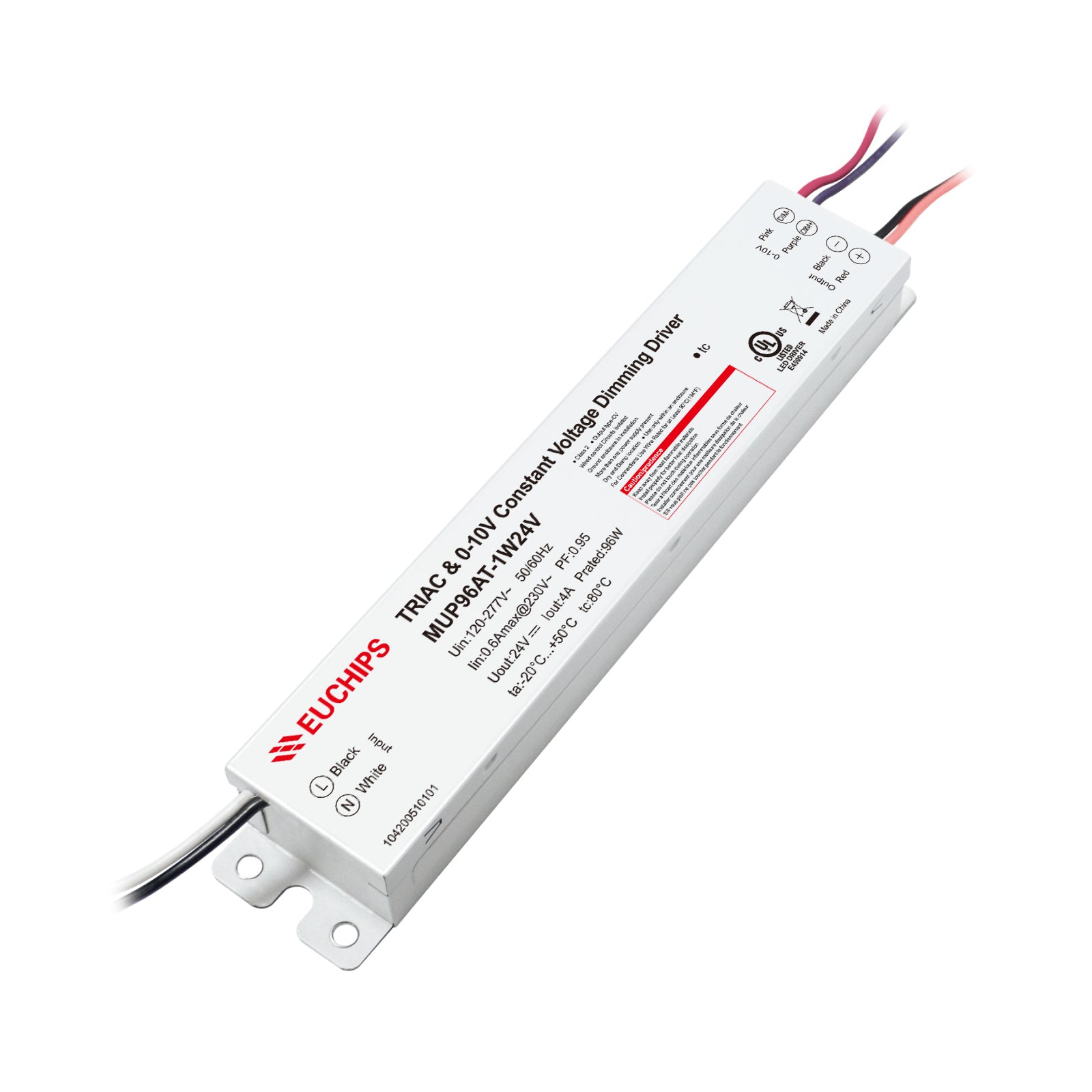

MUP96AT-1W24V |
|
|
Input |
Efficiency |
≥88%@230VAC, full load |
|
Voltage |
120VAC-277VAC |
|
|
Frequency Range(Hz) |
50/60Hz |
|
|
AC Current(max) |
0.6Amax@230VAC 1.1Amax @120VAC |
|
|
PF |
≥0.95@230VAC, full load |
|
|
THD |
<10%@230VAC, full load |
|
|
Inrush Current(max) |
Cold start,35A@230VAC590us |
|
|
Standby power |
<2.5W@230VAC |
|
|
No load power |
<2.5W@230VAC |
|
|
Turn on delay Time |
<0.75s, at230Vac (When the light begins to shine) |
|
|
Output |
Current |
4A |
|
Voltage |
24VDC |
|
|
Voltage Range |
24VDC ±5% |
|
|
Power |
96W |
|
|
Channel |
1 |
|
|
PWM Frequency |
20K Hz |
|
|
Function |
Dimming Type |
0-10V, TRIAC/ELV(@120VAC 60Hz) |
|
Dimming Range |
0.1%-100%(0-10V) 1%-100%(TRIAC/ELV) |
|
|
Dimming curve |
Logarithm |
|
|
Flicker |
Flicker free |
|
|
Protection |
Short Circuit |
Switch off the output power, working automaically after troubleshooting. |
|
Over Load |
Voltage and current drop, self-recovery after troubleshooting |
|
|
Over Current |
Voltage and current drop, self-recovery after troubleshooting |
|
|
Safety&EMC |
Surge |
L-N 2500VAC L-N-PG 2500VAC |
|
Withstand Voltage |
I/P-O/P: 3750Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA |
|
|
Safety standards |
UL8750 UL1310 CSA25013.CSA Class P |
|
|
EMC Eission |
FCC PART15B |
|
|
EMC Immunity |
IEC 61000-4-2-3-4-5-6-8-11 |
|
|
Insulation Resisance |
5MΩ |
|
|
Others |
Working Temp. |
-20℃~+60℃ |
|
Storage Temp., Humidity |
-40℃~85℃, 20-90%RH |
|
|
tc |
80℃ |
|
|
Material |
Metal |
|
|
IP Rating |
IP20 |
|
|
Lifetime |
50,000h@tc:70℃ |
|
|
Warranty Condition |
5 years |
|
|
Switch Cycle |
25,000 times |
|
|
Packing(weight) |
Net weight: 700g±5%/PCS; 20PCS/Carton;14.5kg±5%/Carton; Carton Size: 286*254*154mm(L*W*H) |
|
|
Dimension |
242*45*30mm（L*W*H） |
|
|
Model |

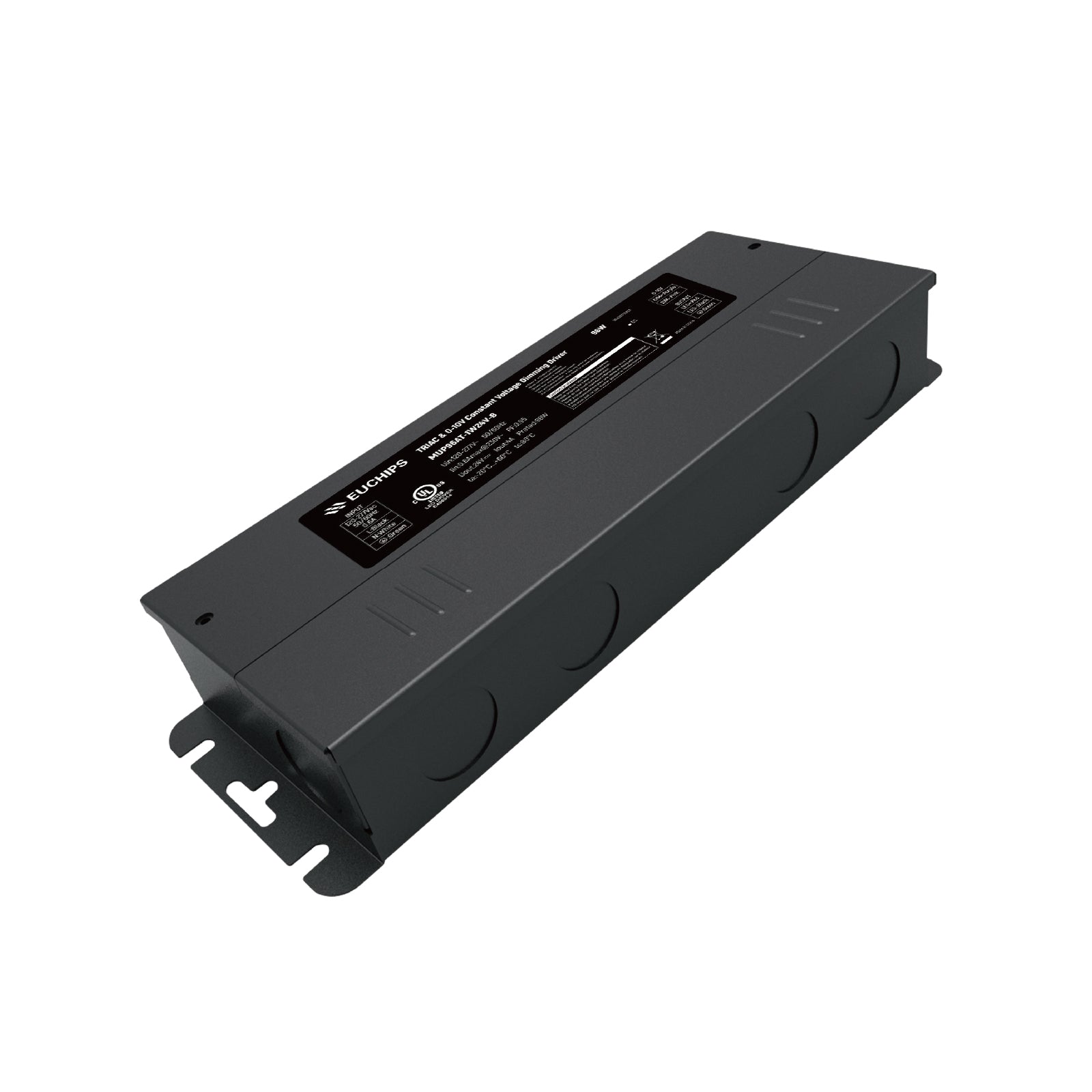

MUP96AT-1W24V-B |
|
|
Input |
Efficiency |
≥86%@120VAC, ≥87%@277VAC, full load |
|
Voltage |
120VAC-277VAC |
|
|
Frequency Range(Hz) |
50/60Hz |
|
|
AC Current(max) |
1.1Amax @120VAC, 0.6Amax@230VAC, 0.5Amax@277VAC |
|
|
PF |
≥0.98@120VAC, ≥0.9@277VAC, full load |
|
|
THD |
<10%@230VAC, <20%@277VAC, full load |
|
|
Inrush Current(max) |
Cold start,16A@120VAC 590us |
|
|
Standby power |
<2.5W@120VAC |
|
|
No load power |
<2.5W@120VAC |
|
|
Turn on delay Time |
<0.75s, @120Vac (When the light begins to shine) |
|
|
Output |
Current |
4A |
|
Voltage |
24VDC |
|
|
Voltage Range |
24VDC ±5% |
|
|
Power |
96W |
|
|
Channel |
1 |
|
|
PWM Frequency |
20K Hz |
|
|
Function |
Dimming Type |
0-10V, TRIAC/ELV(@120VAC 60Hz) |
|
Dimming Range |
0.1%-100%(0-10V) 1%-100%(TRIAC/ELV) |
|
|
Dimming curve |
Logarithm |
|
|
Flicker |
Flicker free |
|
|
Protection |
Short Circuit |
Switch off the output power, working automaically after troubleshooting. |
|
Over Load |
Voltage and current drop, self-recovery after troubleshooting |
|
|
Over Current |
Voltage and current drop, self-recovery after troubleshooting |
|
|
Safety&EMC |
Surge |
L-N 2500VAC L-N-PG 2500VAC |
|
Withstand Voltage |
I/P-O/P: 3750Vac/1min/<5mA I/P-PG:1500Vac/1min/<5mA O/P-PG:500Vac/1min/<5mA O/P-DIM( Signal port ):500Vac/1min/<5mA |
|
|
Safety standards |
UL8750 UL1310 CSA25013.CSA Class P |
|
|
EMC Eission |
FCC PART15B |
|
|
EMC Immunity |
IEC 61000-4-2-3-4-5-6-8-11 |
|
|
Insulation Resisance |
5MΩ |
|
|
Others |
Working Temp. |
-20℃~+60℃ (-4°F-140°F) |
|
Storage Temp., Humidity |
-40℃~85℃, 20-90%RH (-40°F-185°F) |
|
|
tc |
80℃ |
|
|
Material |
Metal |
|
|
IP Rating |
IP20 |
|
|
Lifetime |
50,000小时@tc:80℃ (176°F) |
|
|
Warranty Condition |
5 years |
|
|
Switch Cycle |
25,000 times |
|
|
Packing(weight) |
Net weight: 937g (2.06 lb)±5%/PCS; 10PCS/Carton;9.6kg(21.2 lb)±5%/Carton; Carton Size: 254*254*192mm(10*10*7.56 Inch)(L*W*H) |
|
|
Dimension |
241*81*38mm (9.5*3.2*1.5 Inch)(L*W*H) |
|
