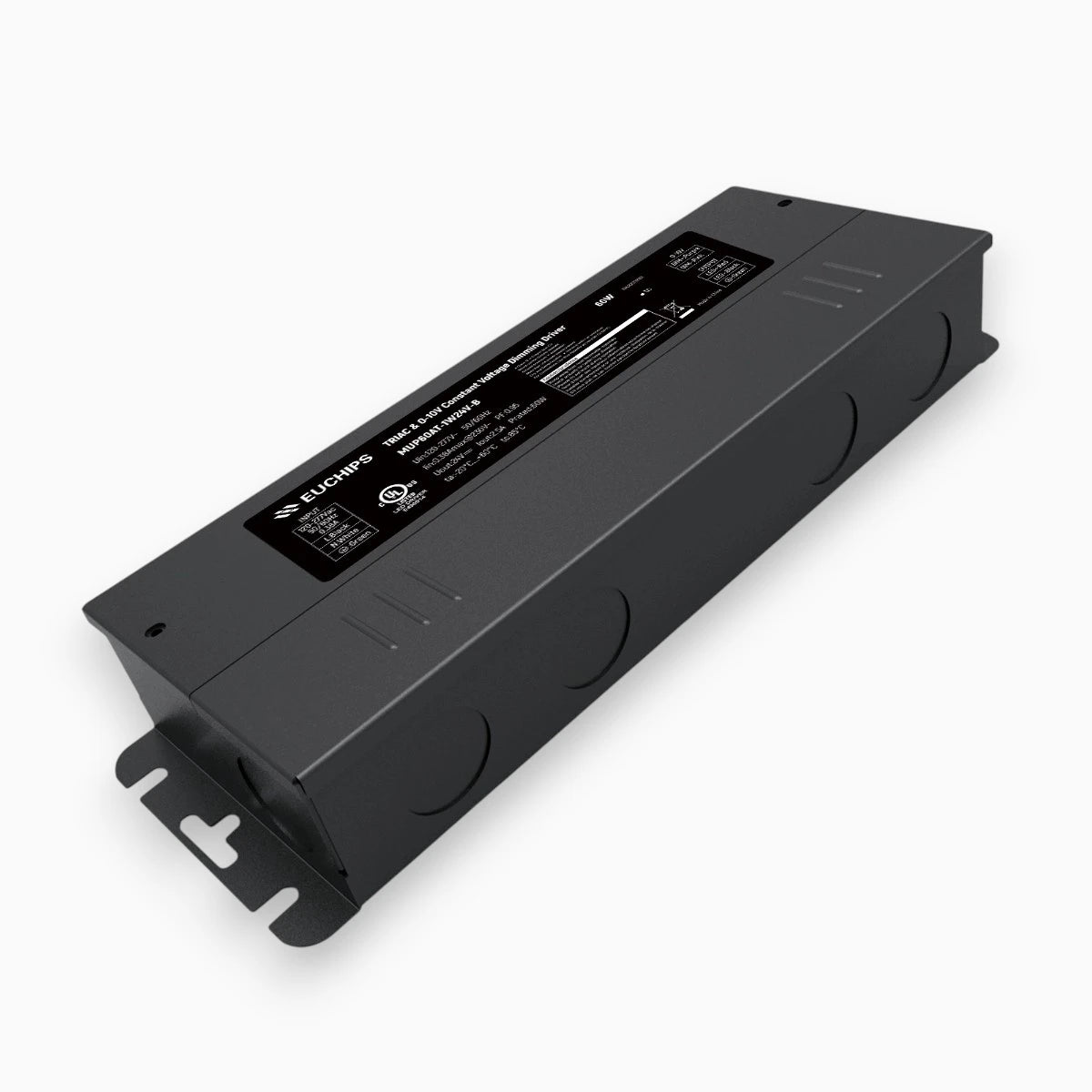

60W 24V Dimmable LED Power Supply

Name: 60W 24V Dimmable LED Power Supply
Brand: Euchips Electronics Inc.
SKU: MUP60AT-1W24V-B
Price: 9999.00 USD
Availability: InStock

$9,999.00

Shipping calculated at checkout.

A 60W constant-voltage LED driver with 24VDC output and dual TRIAC and 0-10V dimming control, designed for smooth, flicker-free indoor LED lighting.

60W Max Output Power
24VDC Constant Voltage Output
2.5A Max Output Current
TRIAC + 0-10V Dual Dimming
0.5%–100% Dimming Range with 0-10V
1%–100% Dimming Range with TRIAC
120–277VAC Wide Input
Flicker-Free Dimming
IP20 Metal Housing
5-Year Warranty

Technical Paramters

Model	MUP60AT-1W24V-B
Product Type	Constant Voltage Dimmable LED Driver
Rated Power	60W
Input Voltage	120–277VAC
Input Frequency	50/60Hz
Output Voltage	24VDC ±5%
Output Current	2.5A Max
Output Channels	1
Dimming Type	0-10V + TRIAC
0-10V Dimming Range	0.5%–100%
TRIAC Dimming Range	1%–100%
0-10V Dimming Curve	Logarithmic
Power Factor	≥0.95 @ 230VAC, Full Load
Efficiency	≥86% @ 230VAC, Full Load
THD	<10% @ 230VAC, Full Load
Turn-On Delay	<0.75s @ 230VAC
Protection	Short Circuit, Overload, Over Current
Flicker	No Flicker
Housing Material	Metal
IP Rating	IP20
Operating Temperature	-20°C to +50°C
Lifetime	50,000 Hours @ ta 50°C
Switching Cycles	25,000 Times
Dimensions	241 × 81 × 38 mm
Net Weight	Approx. 937 g
Warranty	5 Years

Two Dimming Options in One Driver

This 24V LED driver supports both TRIAC phase-cut dimming and 0-10V dimming, giving you greater flexibility when matching the driver with different lighting controls.

With a compatible 0-10V dimmer, the output can be adjusted from approximately 0.5% to 100% using a smooth logarithmic dimming curve. With a compatible TRIAC dimmer, the driver provides a dimming range of approximately 1% to 100%. When no dimming signal is connected, the driver operates at 100% output, allowing it to be used as a standard 24V constant-voltage LED power supply.

Smooth 24V Power for Indoor LED Lighting

The driver provides a single-channel 24VDC constant-voltage output with up to 2.5A current and 60W total output power. Its wide 120–277VAC input range makes it suitable for a variety of indoor lighting installations.

The metal housing and built-in short-circuit, overload and over-current protection help ensure stable operation in compatible LED lighting systems. The driver is rated IP20 and is intended for dry indoor applications such as architectural lighting, commercial lighting, LED strips, linear lighting and other compatible 24V constant-voltage LED fixtures.
